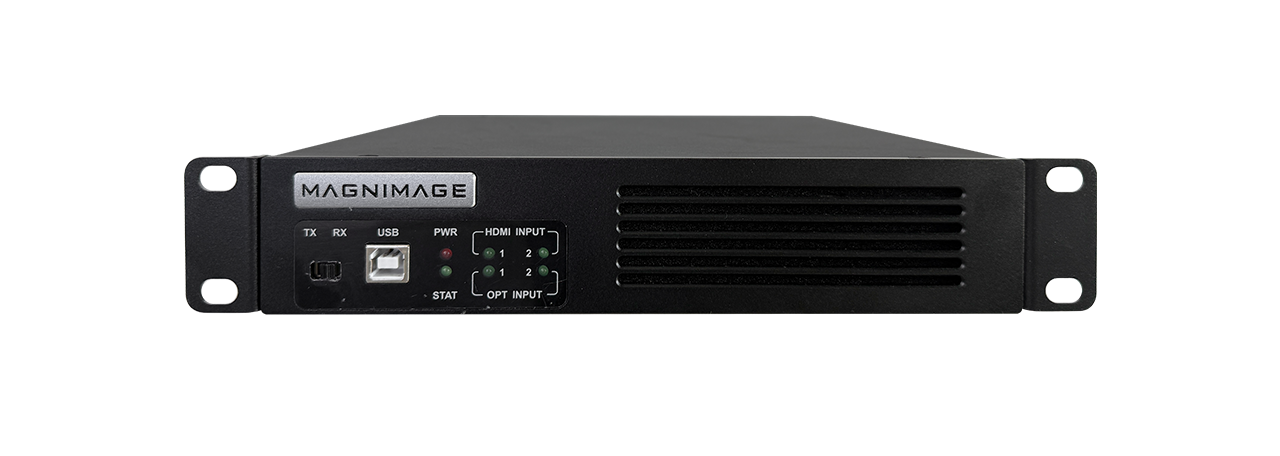

Double-Channel HDMl2.0 Fiber Extender

Simultaneously transmits two independent HDMI 2.0 signals with a bandwidth of up to 18Gbps/HDMI.Supporting 4K*2K or 8K*1K resolution. Supports HDCP.

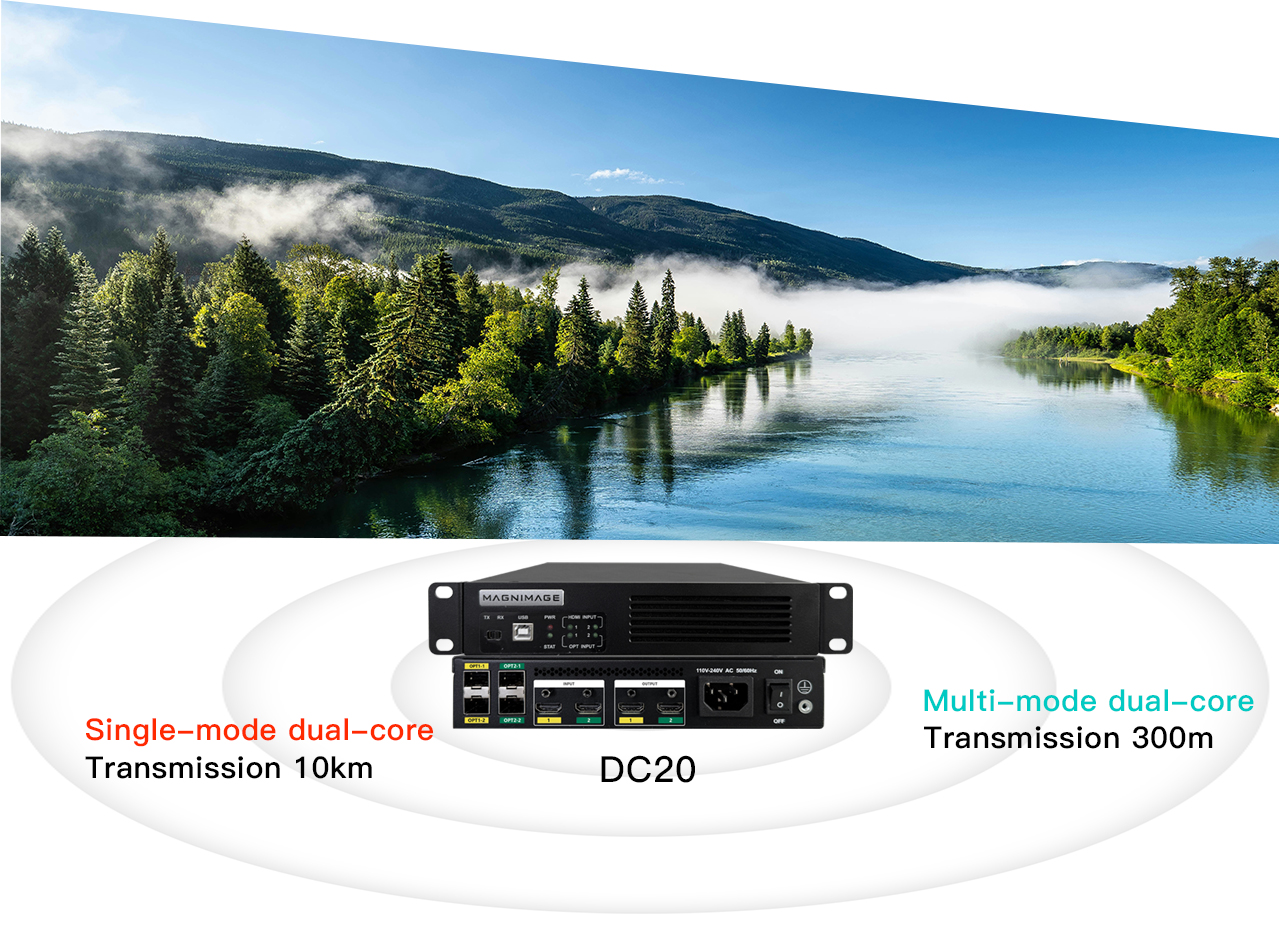

Lossless long-distance transmission of signals with no delay and no image quality loss, ensuring high-definition display.Used with single-mode optical modules transmission up to 10 km. Used with multi-mode optical modules transmission up to 300 m.

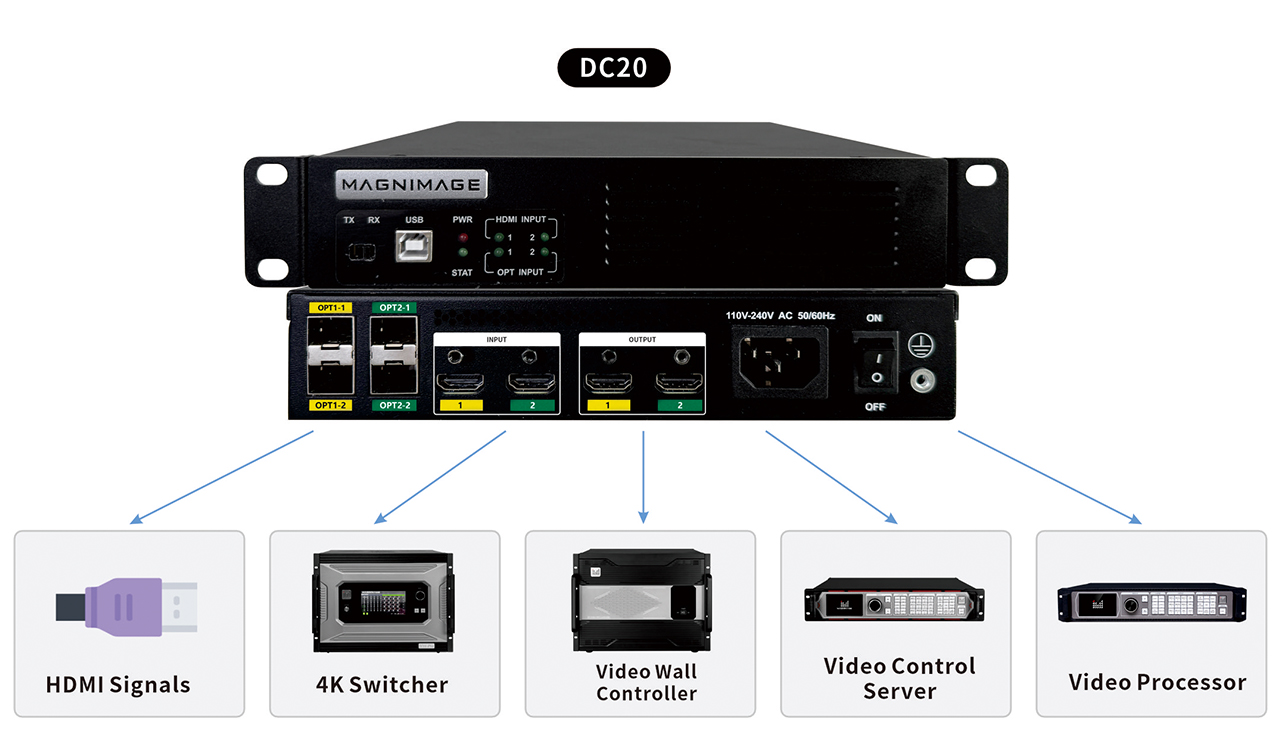

Compatible with Magnimage's video wall controller, switchers, video control servers, video processors, and other HDMI input devices such as LCD screens and projectors.

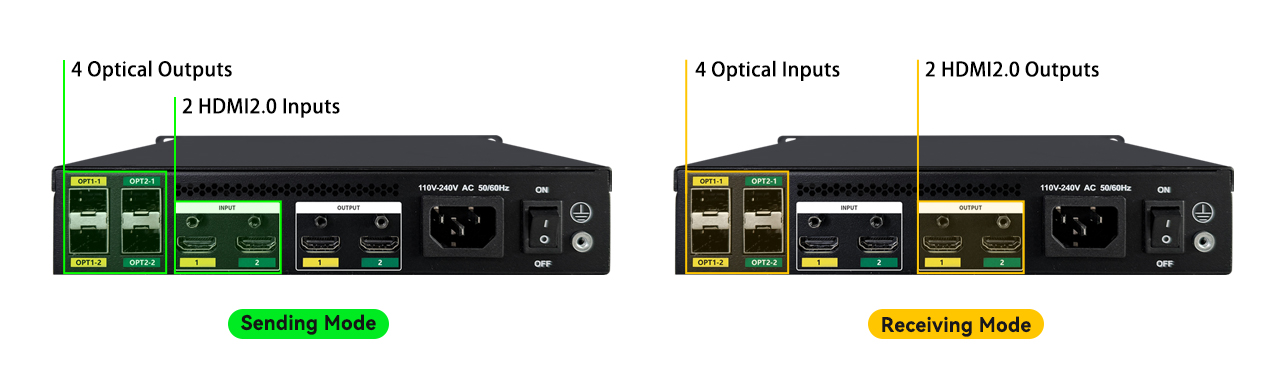

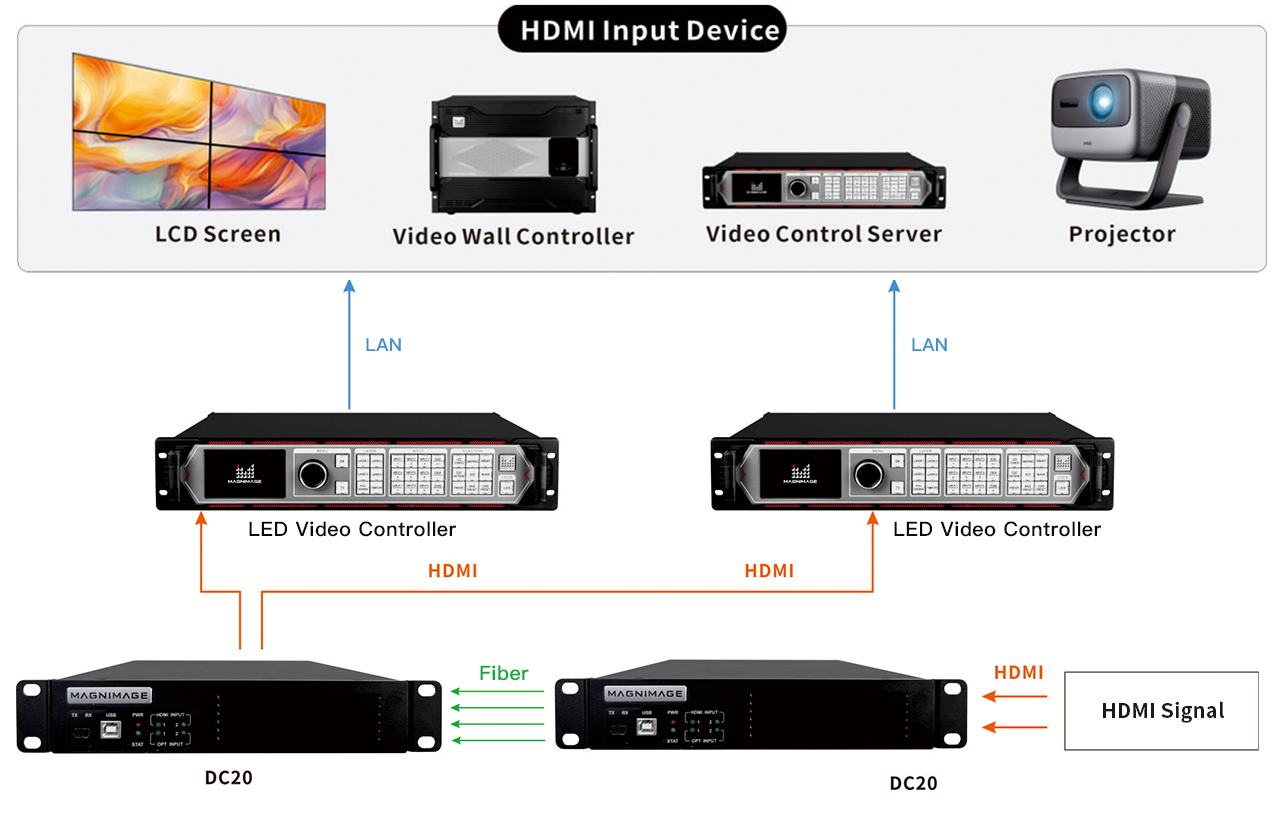

The TX converts the HDMI signal into an optical fiber signal for long-distance transmission, while the RX receives the optical fiber signal, converts it back into an HDMI signal, and outputs it to the HDMI input device.

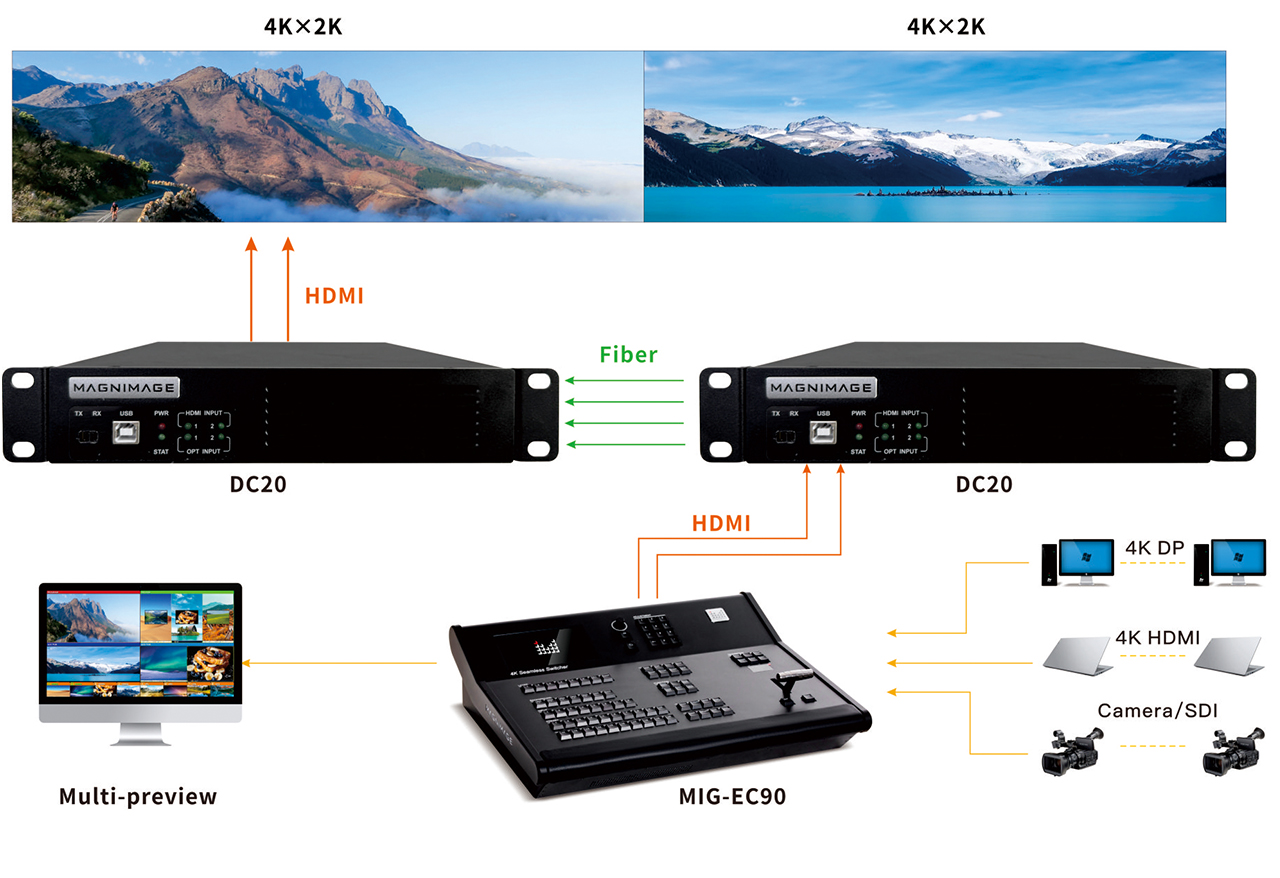

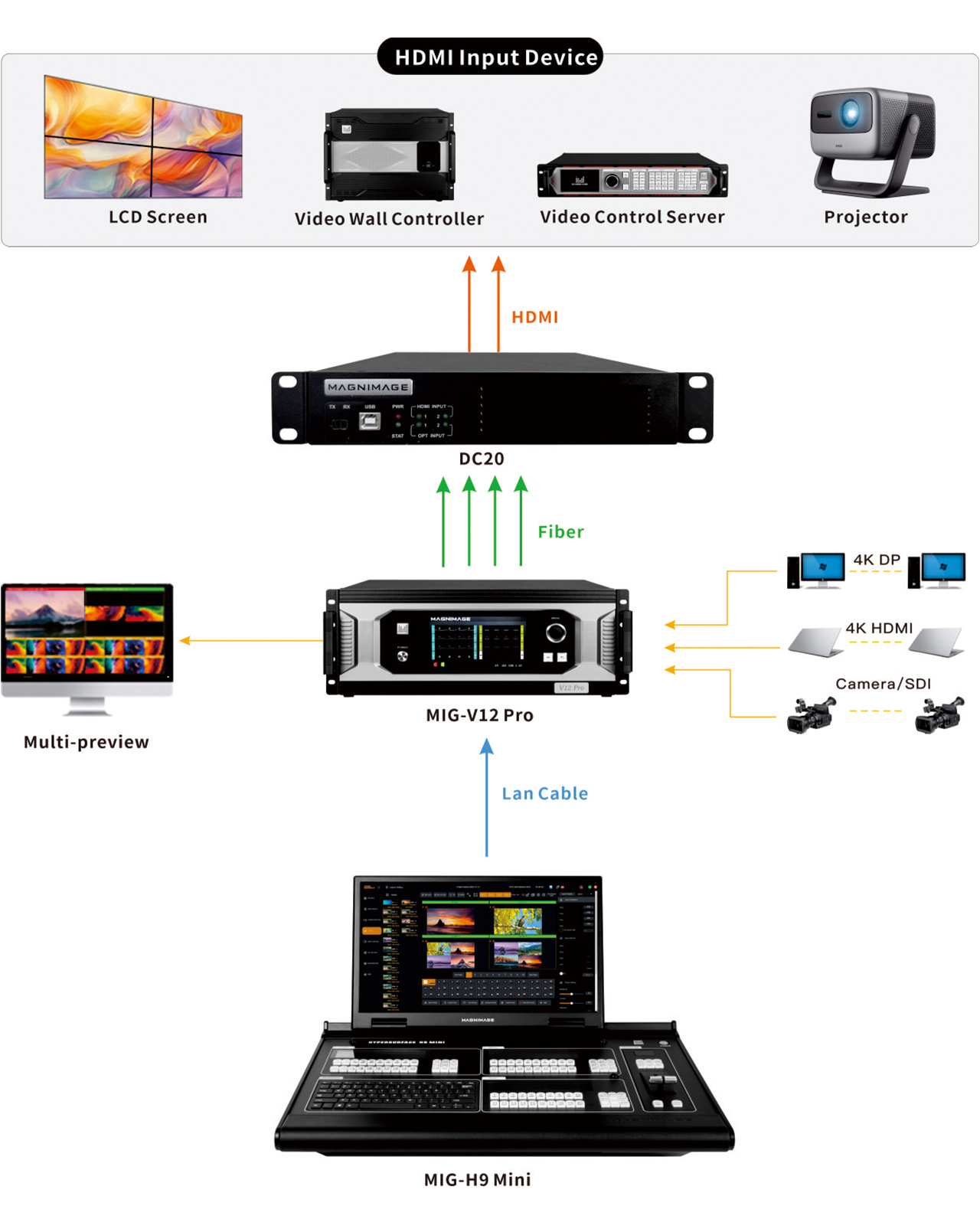

When used with Magnimage’s switchers(such as MIG-V12 Pro, MIG-V16 Pro, MIG-EC40 Pro, etc.) for optical output, it can be used for back-end fiber optic signal reception, converted into HDMI signals, and connected to various HDMI input devices.

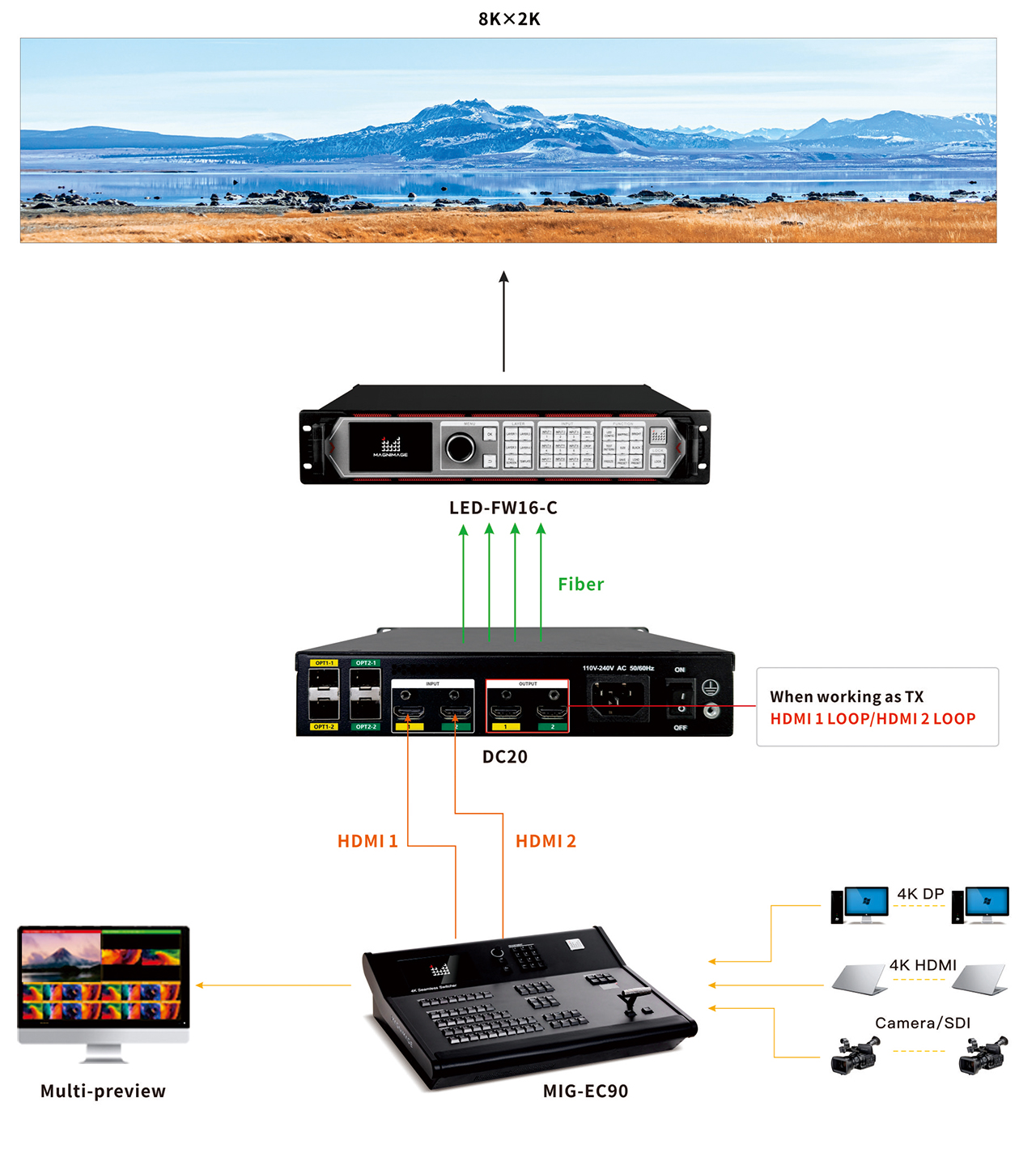

When using the optical input of Magnimage’s video control server (such as LED-FW10-C,LED-FW16-C, etc.) at the back end, it can be used with a front-end HDMI output device to convert the HDMI input to OPT output for long-distance fiber optic transmission.
