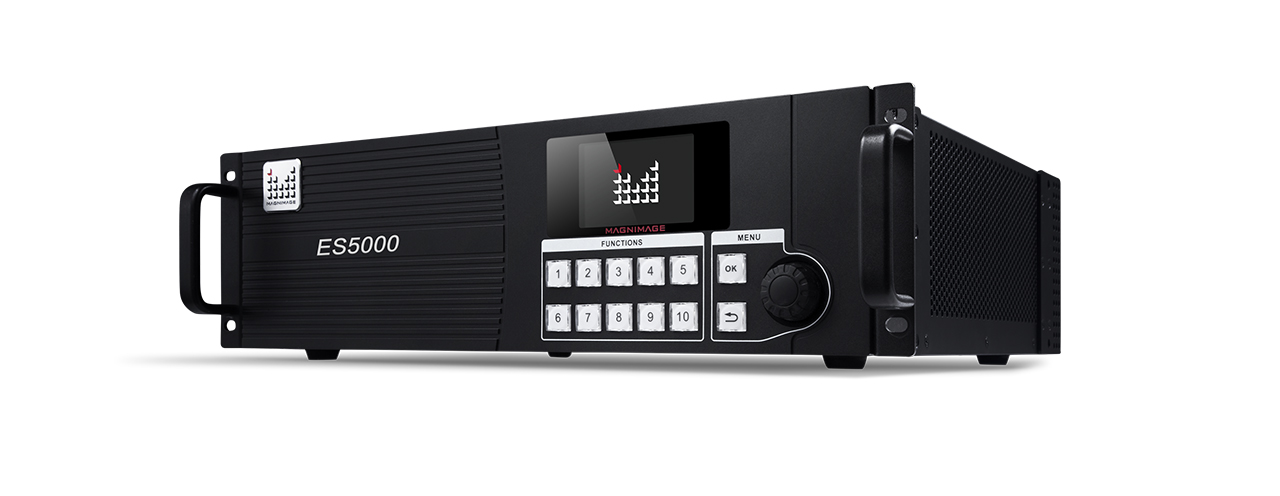

MIG-ES5000 Series
Input ports

The 5 input slots allow you to build the machine based on your application. 2K options include DVI, HDMI, VGA, SDI and VGA/SDI mixed card. 4K options include DP card and DP/HDMI mixed card.

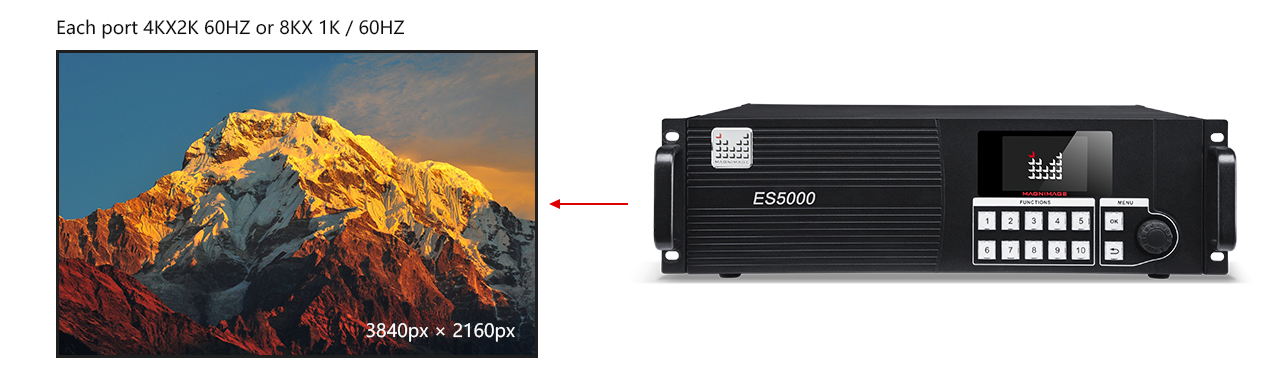

Program outputs

The 4 Program outputs can be
set as any mosaic layout, such
as 4x1 or 2x2. In these 4 outputs,
you can set maximum 16 layers
at one time.

Auxiliary output

Like Program outputs, these 4
AUX outputs can be set as any
mosaic layout, but each output
only support 1 layer at one time.

Reverse look output

3-way look back at the output, independently select one way from the input to the corresponding output, and support fast switching.

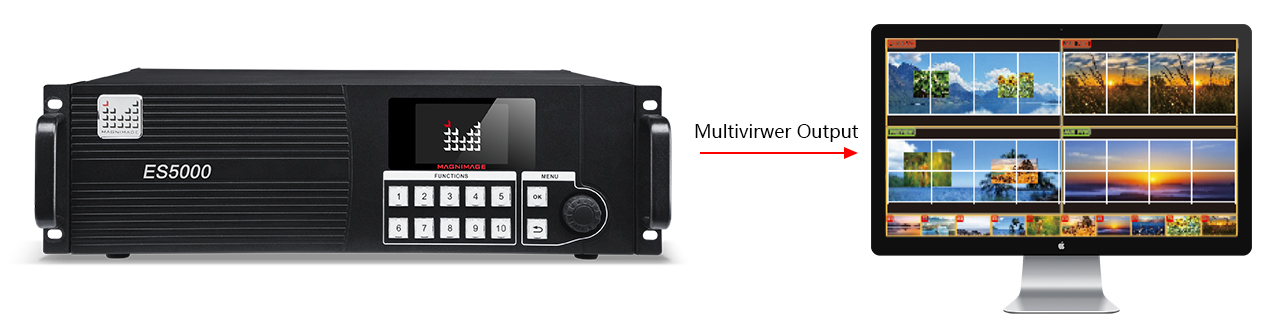

Multiviewer output

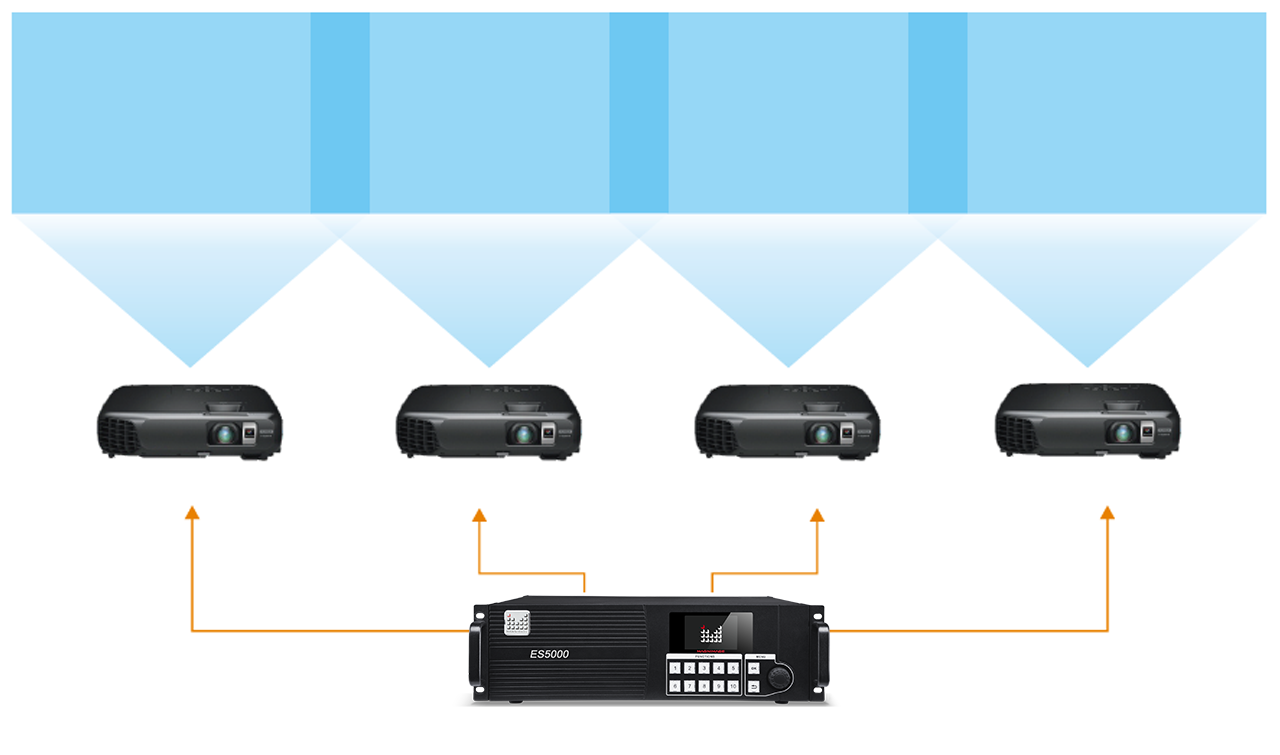

projection blending mosaic

Each output port's blending size, position, blending direction, gamma rate can be setup separately,

it's applicable for both program output and aux output;

each V5supports maximum 8 projectors for blending mosaic.

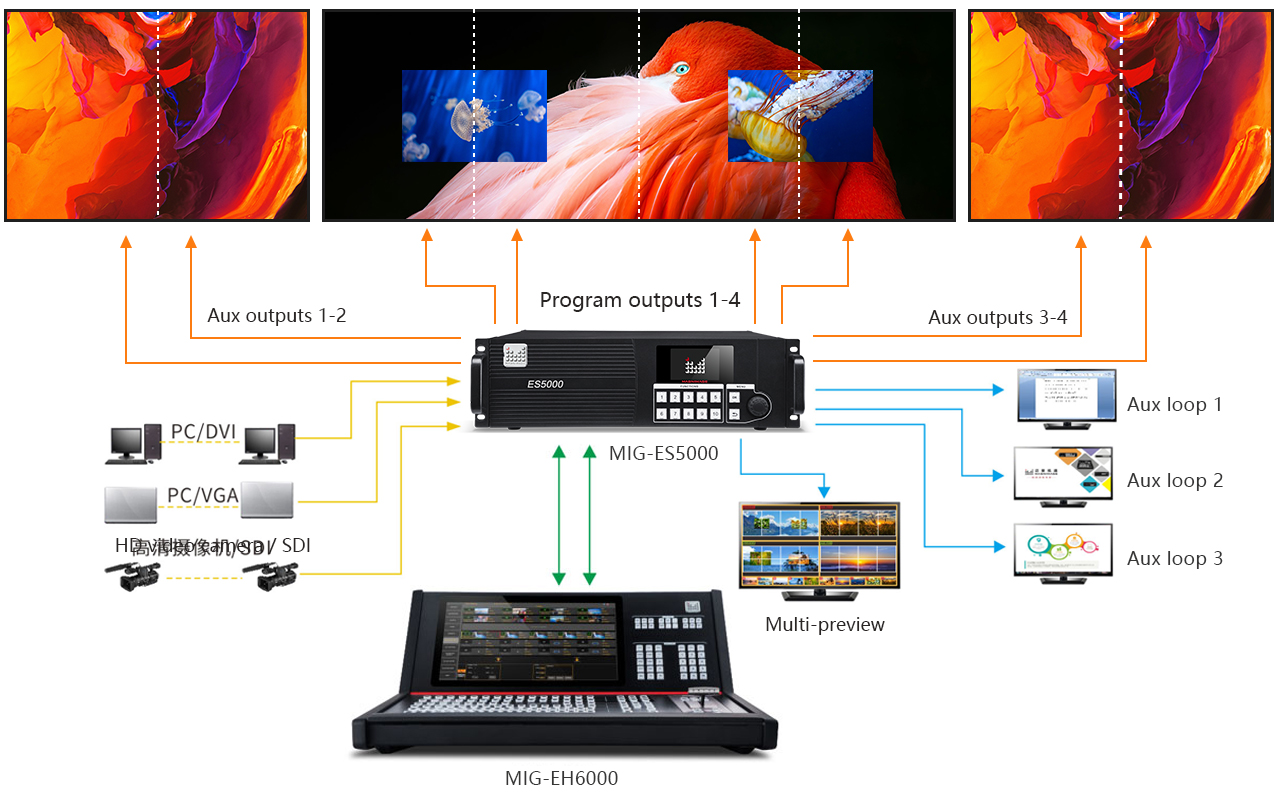

Use solutions

ES5000 supports EH8000, EH6000, EXK200, computers and other devices to be used together.
