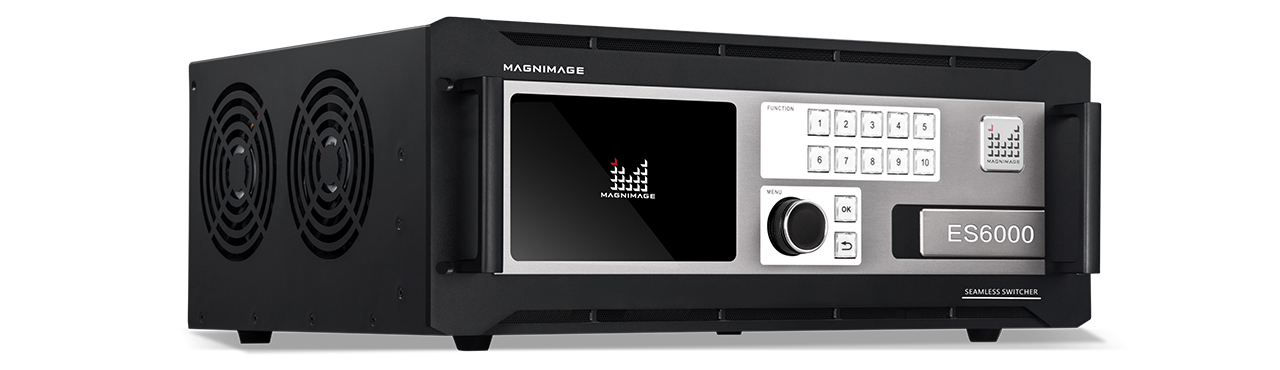

MIG-ES6000 Series
Rich input ports

The 6 input slots allow you to build the machine based on your application. 2K options include DVI, HDMI, VGA, SDI and VGA/SDI mixed card. 4K options include DP card and DP/HDMI mixed card.

Program outputs

4 Program output: setup layout as
requirement (for example:1 group of
4*1 or 2 groups of 2*2 ); program
outputs support maximum 16 layers
at the same time.

Auxiliary output

4 aux output: setup layout as
requirement, each aux output
supports only 1 layer.

Reverse look output

3 aux loop output: select any l input signal to related aux loop
output, supports quick switching.

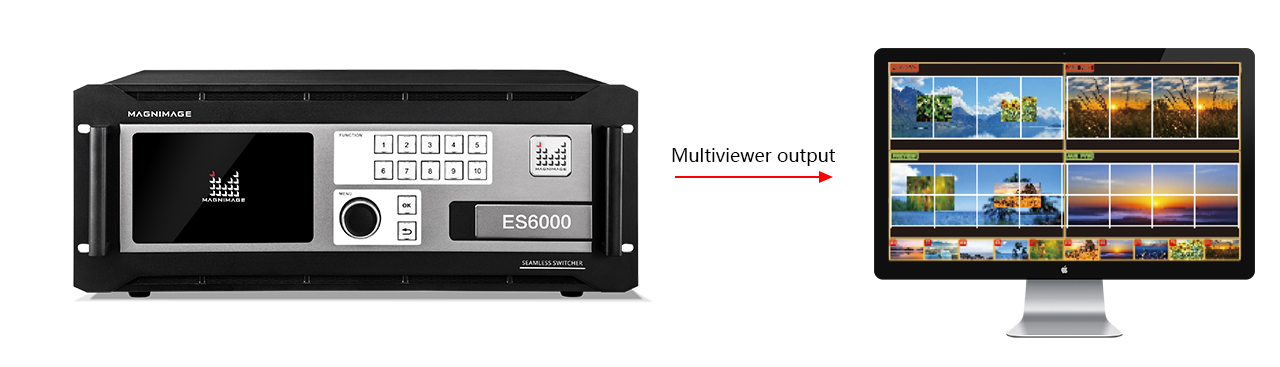

Multiviewer output

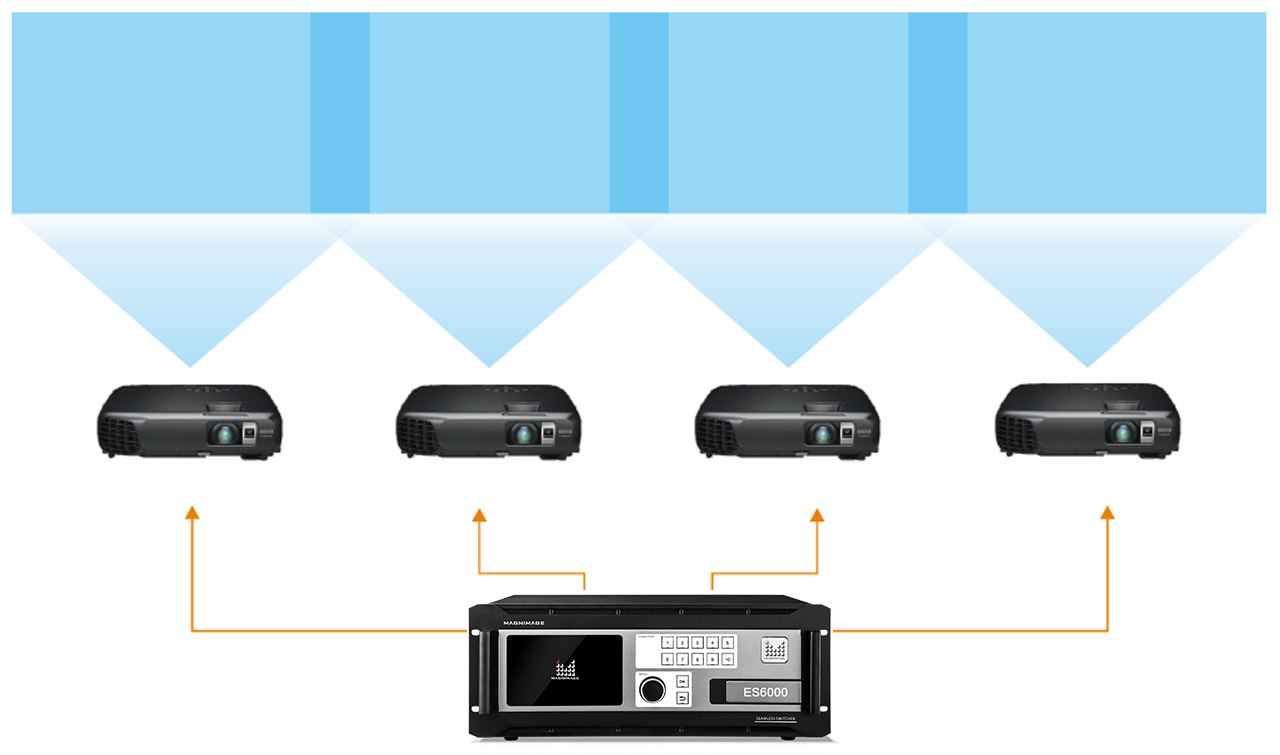

projection blending mosaic

Each output port's blending size, position, blending direction, gamma rate can be setup separately,

it's applicable for both program output and aux output;

each V6 supports maximum 8 projectors for blending mosaic.

Use solutions

ES6000 supports EH8000, EH6000 and other video consoles to be used together.
