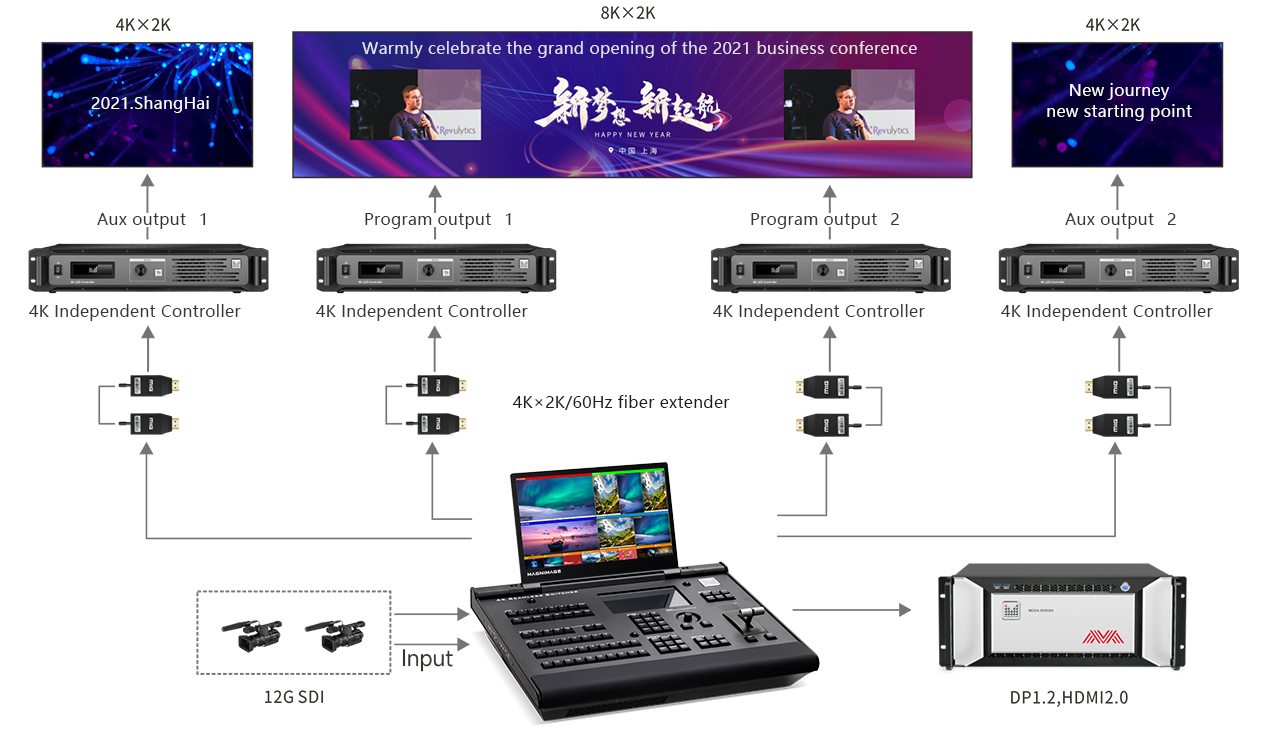

4-channel output includes 2-channel 4K main output and 2-channel 4K auxiliary output, supports customized output resolution, independent output or mosaic output
The Program output support 6 independent layers and fade in/out switching.
The size and position of all layers can be set freely.

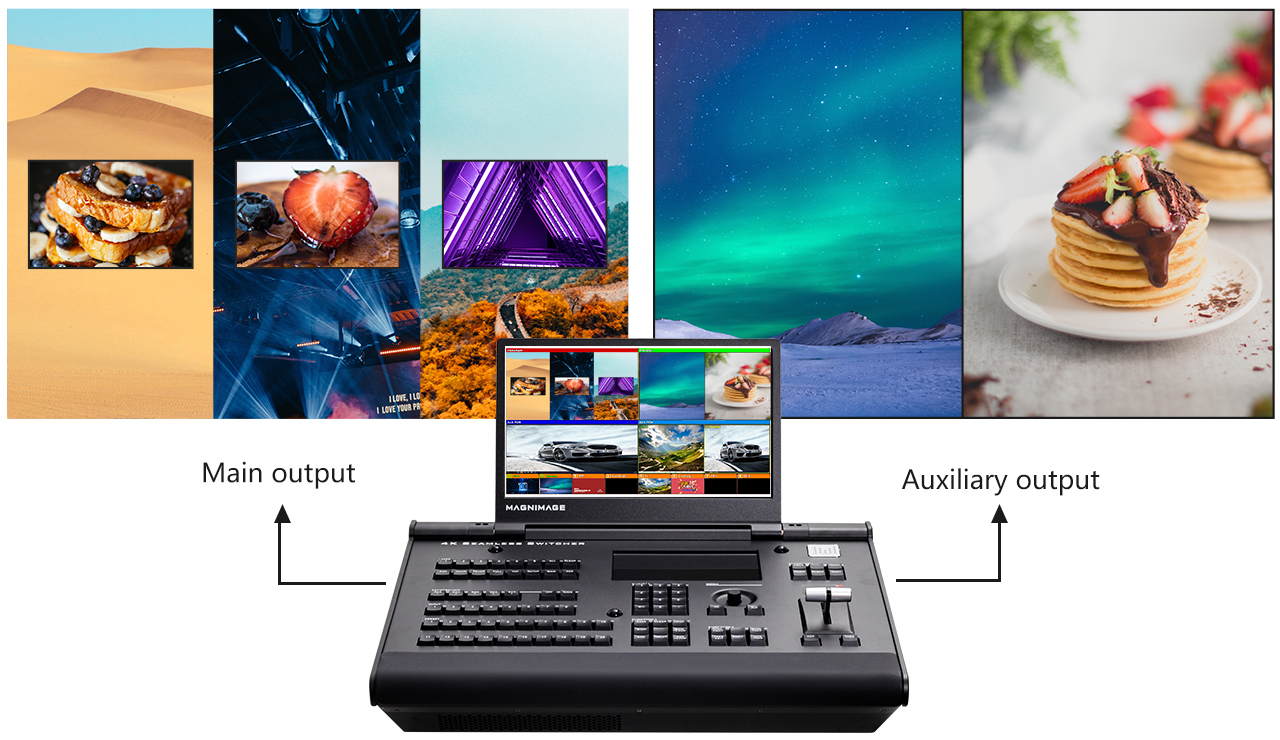

The AUX output support 1 layer per output or 1 full screen for two output, andsupport fade in/out switching
Main output supports a variety of layer effects such as layer scenes, customize border effects, shadow functions, etc.
Lossless transmission standard 4K@60Hz video signal input, making the picture quality more high-definition, meeting the high-demand video signal transmission needs of the broadcasting and television industry
All input and output signals can be real-time monitored, modify the name and remarks, and ensure that the activities are safe.
Provides 5 fixed layouts and 1 custom layout, which are convenient for users to customize settings according to their own preferences, helps to improve the efficiency.
The two main outputs support virtual screen settings, and the resolution of the preview interface is virtualized to the actual resolution of the LED screen, which is convenient to complete the layer parameter settings quickly and accurately.

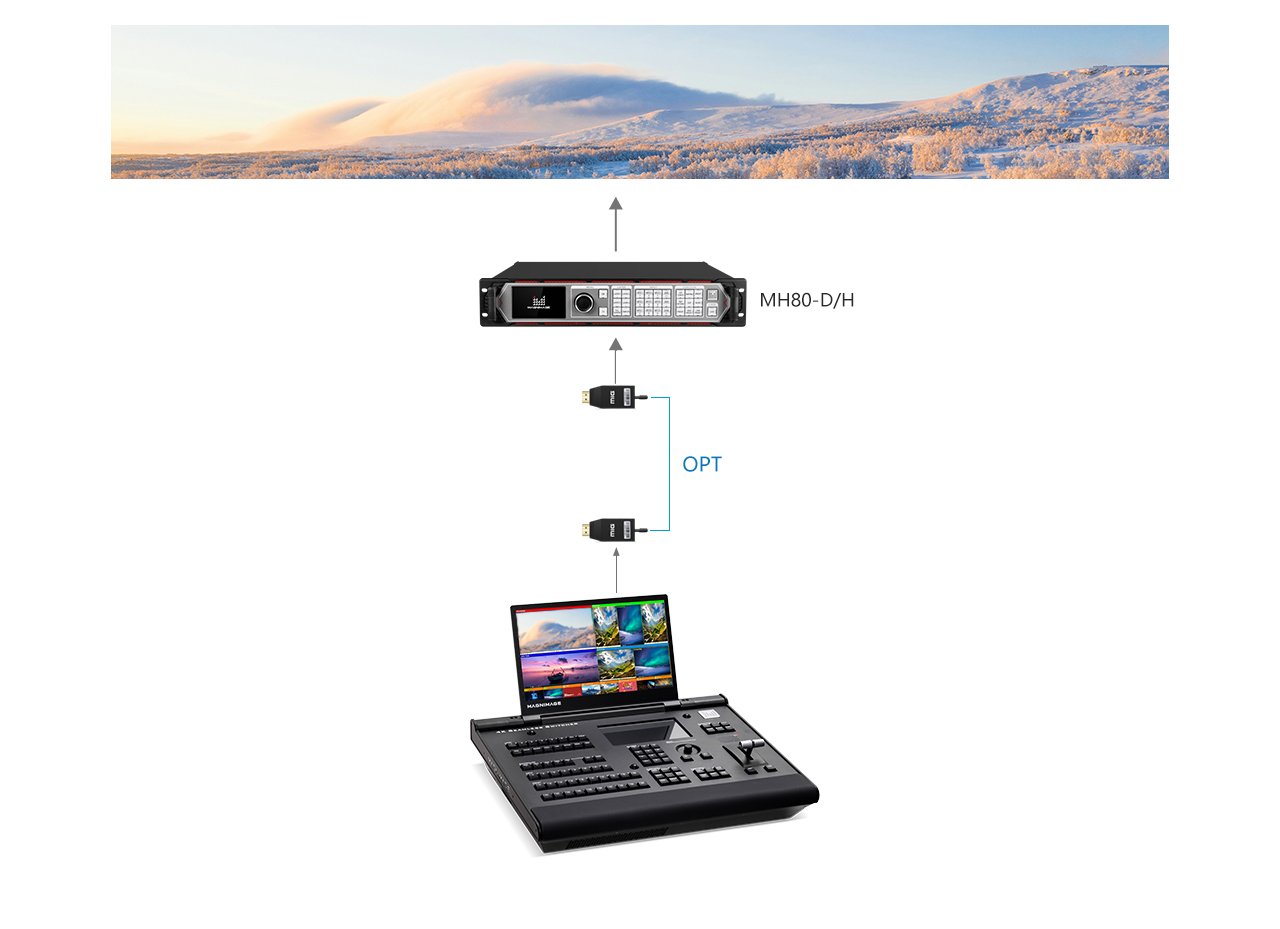

Work with MOPT401-T/R 4K fiber optic extender to achieve 4Kx2K@60Hz ultra-long distance lossless transmission.

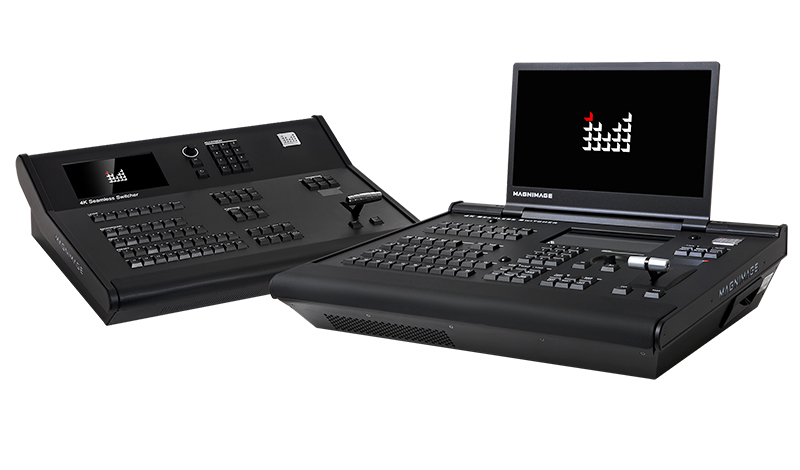

Touched screen control, T-bar switching control and keyboard control
