LED-W2000 Series

4Kx2K LED Video Processor

LED-W2000 Series

8K x 1K pixel to pixel input/output

4 x DVI horizontal mosaic, 8K x 1K pixel to pixel and multi picture display

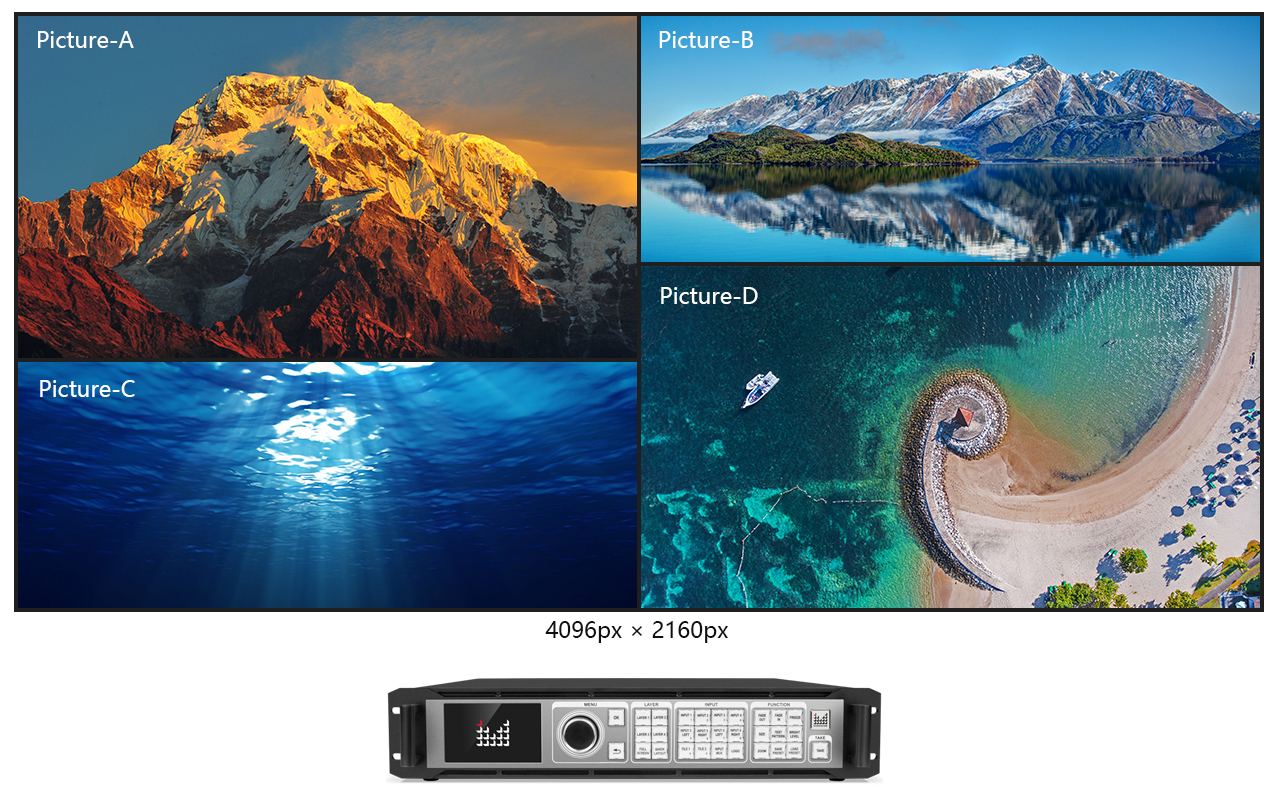

4K x 2K pixel to pixel input/output

4 x DVI 2x2 mosaic, 4K x 2K pixel to pixel and multi picture display

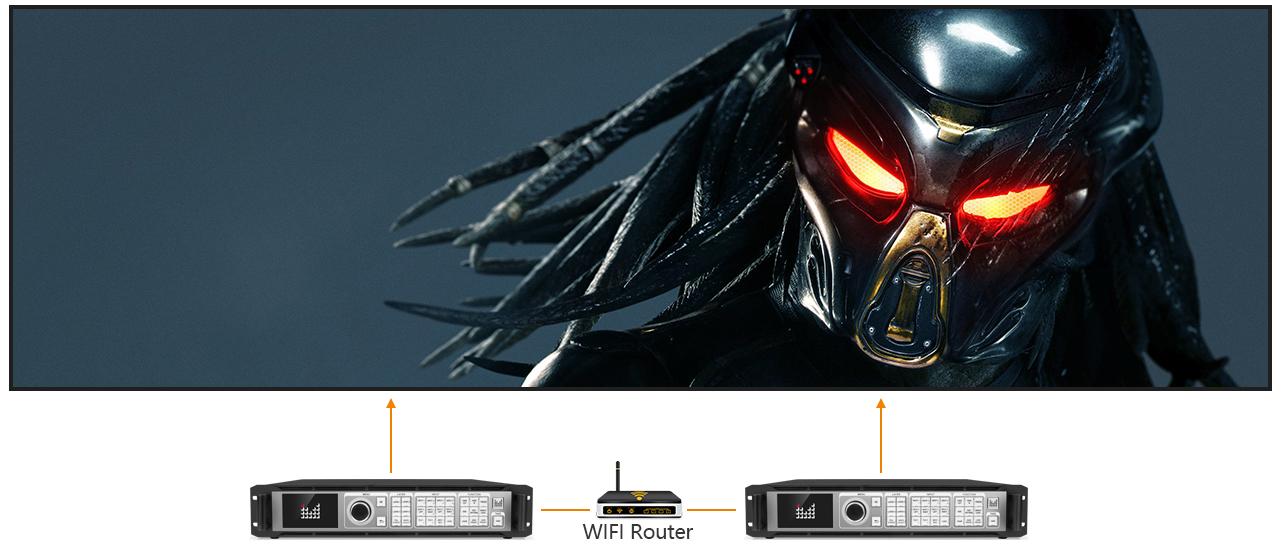

Multi-machine cascade switch

Do Synchronous switch operation of multiple LED-W2000 in same local area network

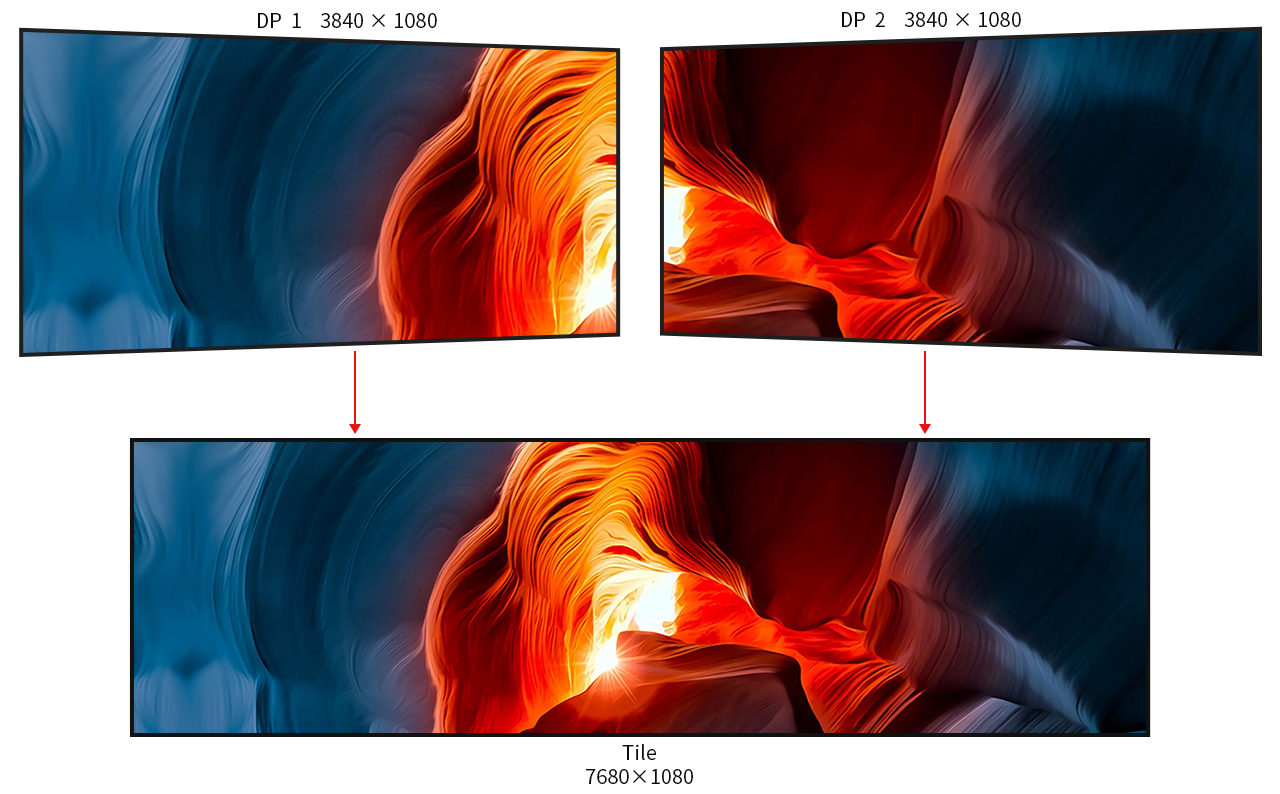

Input Tile function

Make multiple input sources (same resolution, maximum 4 ports) combine to one integral whole in input side of processor,

make it as one combination source.

Simplify the setting steps and optimized operation, no need to consider the equal/unequal situation.

Tile function is supported under mosaic, switch and backup mode.

Support 2 groups of Tile setting, can quickly adjust the combination source through Tile button of front panel.

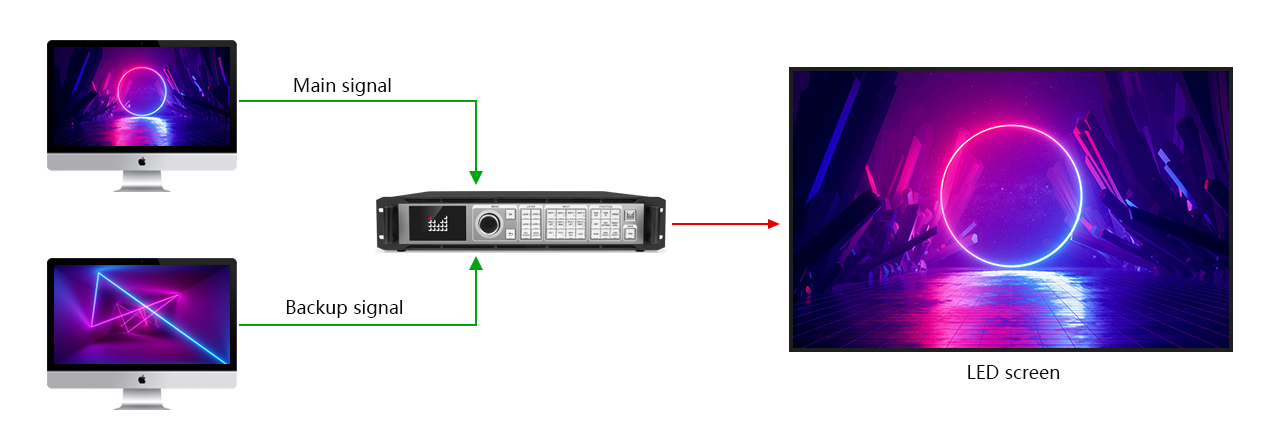

Backup function

Support input backup function, freely switching by automatic or manual between host and standby signals.
