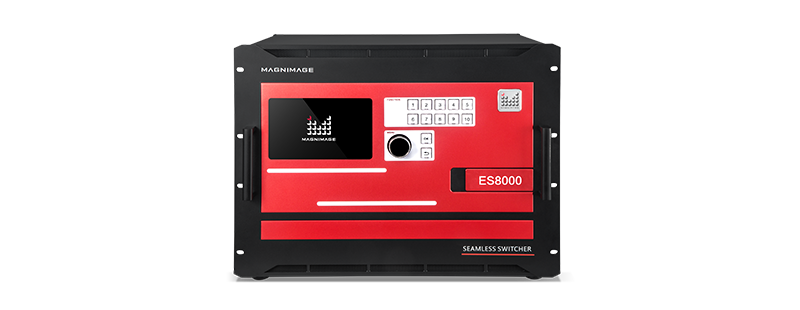

Video Switcher
MIG-ES8000 Series
Rich input ports

The 9 input slots allow you to build the machine based on your application.

2K options include DVI, HDMI, VGA, SDI card and VGA/SDI mixed card.

4K options include DP card DP/HDMI mixed card.

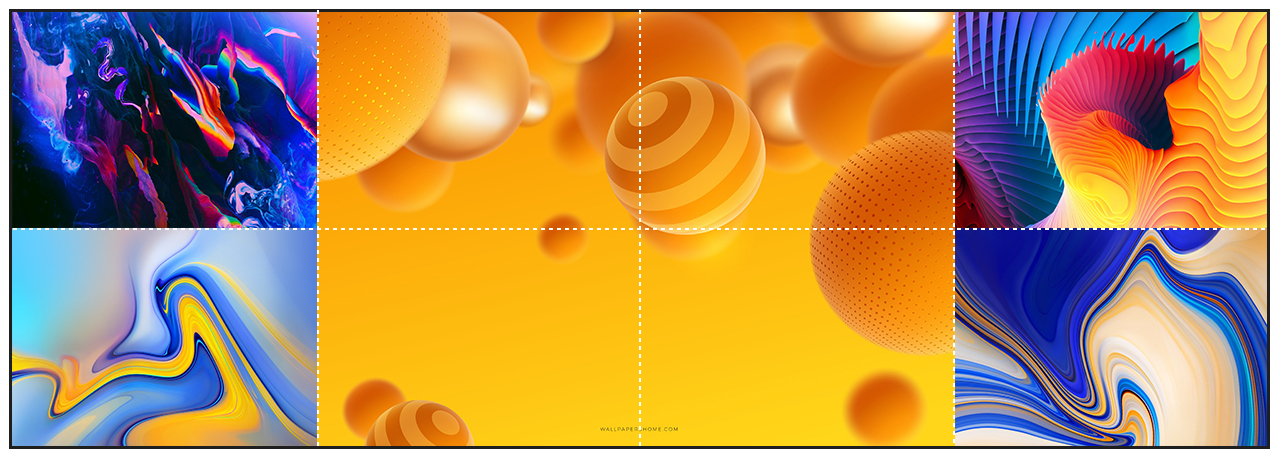

Program output

8 Program output: setup layout asrequirement (for example:1 group of
4*2 or 2 groups of 2*2 ); programoutputs support maximum 16 layers
at the same time.

Auxiliary output

There are 8 auxiliary outputs in total, and the outputs can be spliced according to the requirements (for example, one set of 4x2 or two sets of 2x2).

Auxiliary output supports simultaneous display of 1 layer.

Reverse look output

3 aux loop output: select any 1 input signal to related aux loop
output, supports quick switching.

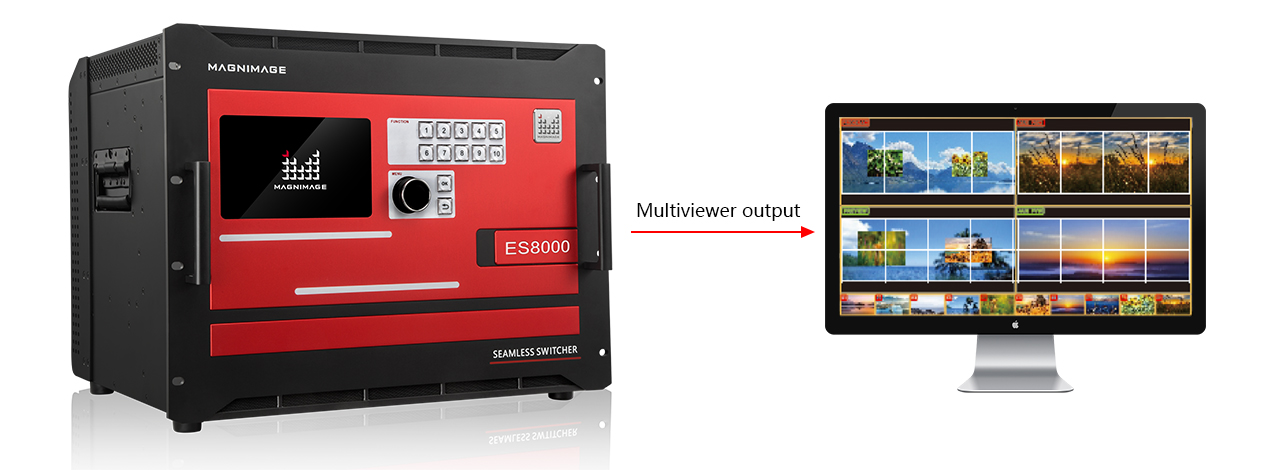

Multiviewer output

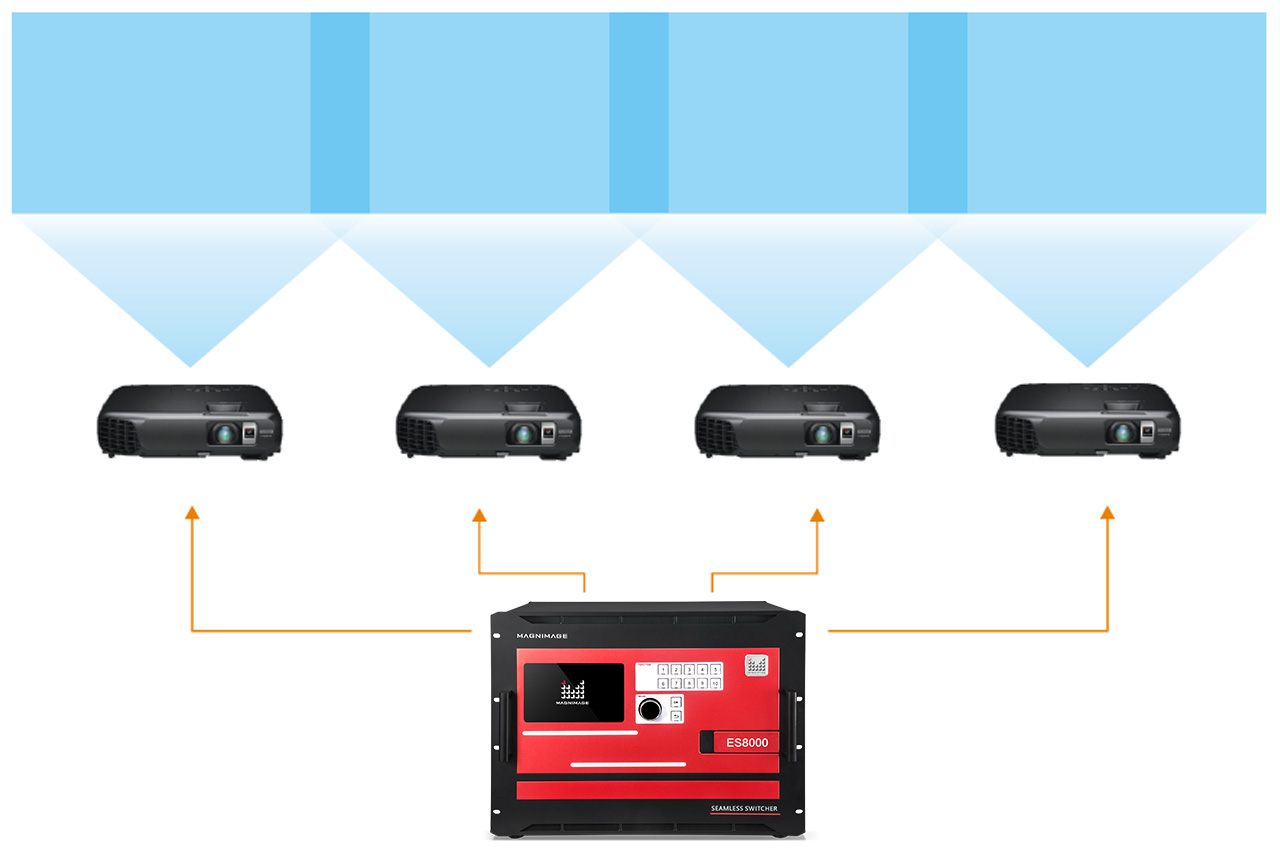

projection blending mosaic

Each output port's blending size, position, blending direction, gamma rate can be setup separately,

it's applicable for both program output and aux output;

each V8 supports maximum 16 projectors for blending mosaic.

Use solutions

ES8000 supports EH8000, EH6000 and other video consoles to be used together.
